This guide explains how to install the Zaptec Column safely and efficiently, following best practices and industry standards.
- If you are installing the standard Zaptec Pro (not the T2S version), click here for the appropriate installation guide.
-
For documentation on the dredging foundation, click here.
Only qualified personnel should install, repair, or maintain this product. Always follow all local, regional, and national regulations.
Safety and compliance
Each Zaptec Pro T2S charging station must be individually protected by a 40A-rated omnipolar magnetic and thermal circuit breaker, with a breaking capacity and C-tripping curve, and by a Type A differential device with a sensitivity of 30mA. These two types of protection can be combined in one device
The power supply cables for the Zaptec Pro T2S charging stations can be of the following types: U1000 R2V / H07-RNF / Power Bus, depending on the installation requirements and the chosen distribution type. These cables should also comply with the local normative regulations.
Included in the package
- Zaptec Column
- Front lid
- Top lid
- Charger lid (if no charging station is attached)
- Footplate*
- Screw kit
*Choose the footplate according to your foundation type (the illustration shows the 160 mm foundation footplate).
How to install the column
1. Install the grounding connection

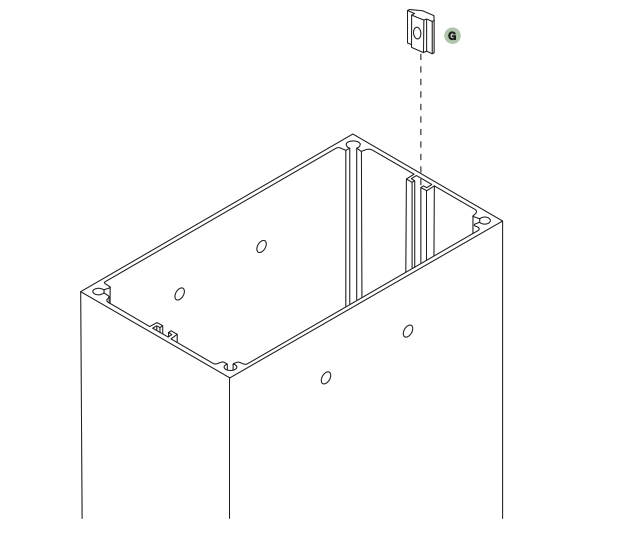

- Insert a nut into the slot inside the column at your desired height.

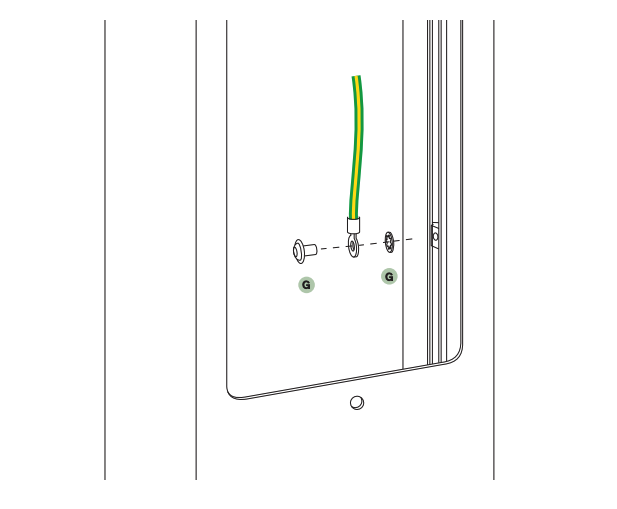

- Attach the grounding cable and tighten the bolt to ensure a solid electrical connection.
2. Attach the footplate

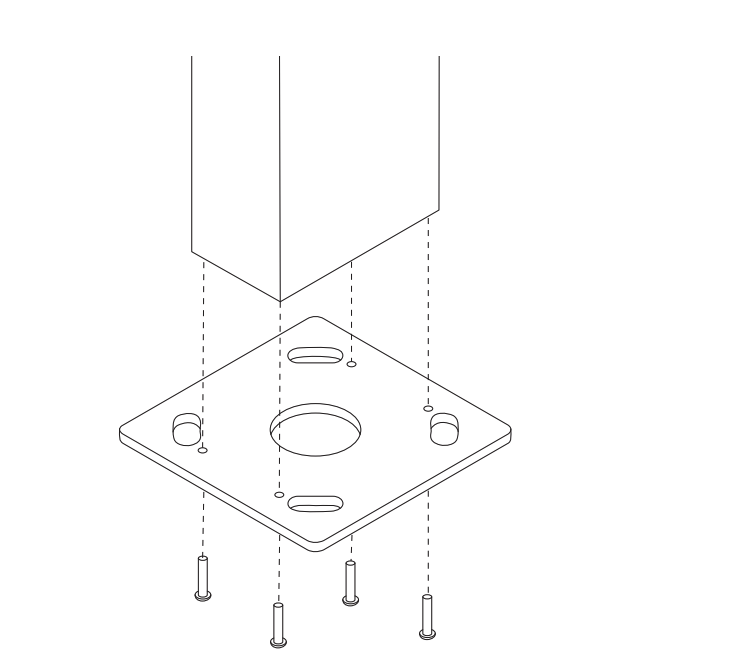

- Place the footplate on the bottom of the column, aligning all holes.
- Secure with the supplied M8x40 bolts (maximum 15 Nm torque).
- Double-check alignment with the foundation bolts.
3. Connect the supply cables

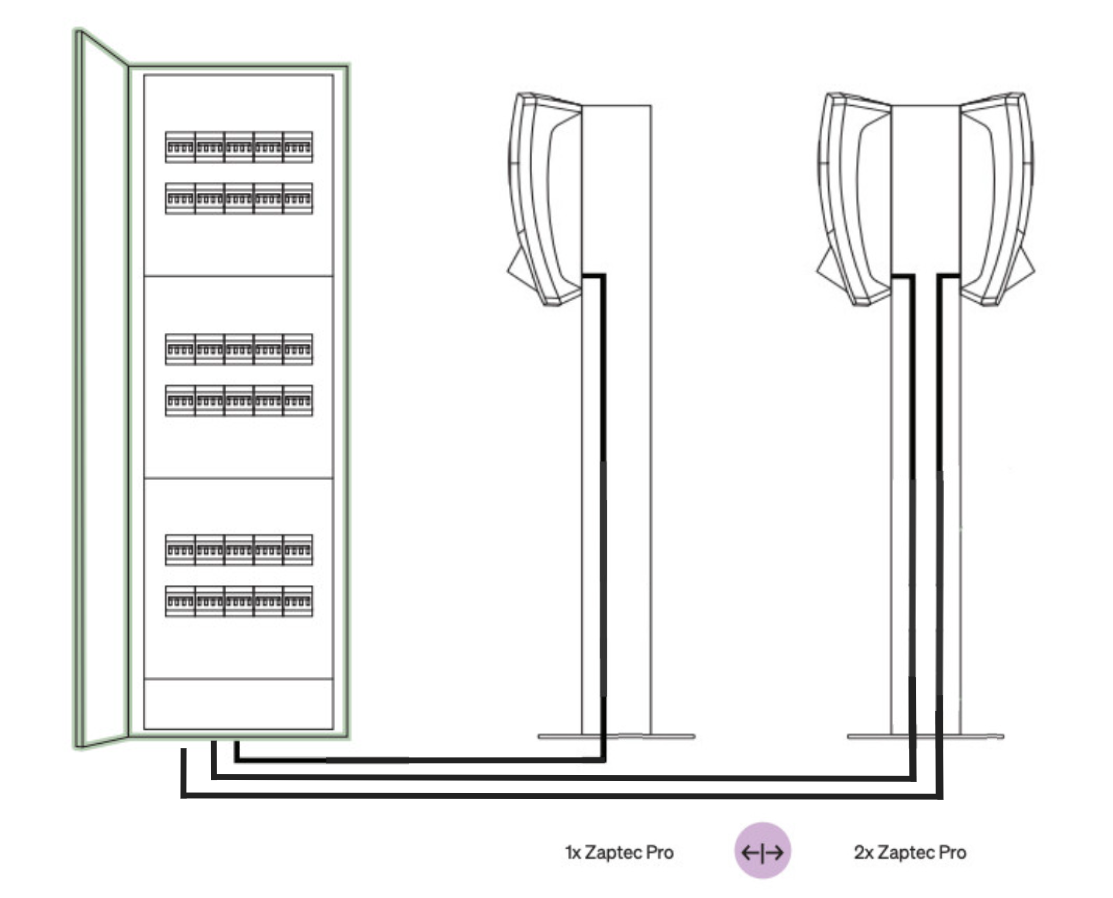

- Connect the supply cables to the terminals, following the wiring diagram for L1, L2, L3, N, and PE.
- Check that all connections are tight and that insulation is intact.
Each Zaptec Pro T2S charging station must be individually protected by a 40A-rated omnipolar magnetic and thermal circuit breaker, with a breaking capacity and C-tripping curve, and by a Type A differential device with a sensitivity of 30mA.
4. Mount the Zaptec Pro Backplate

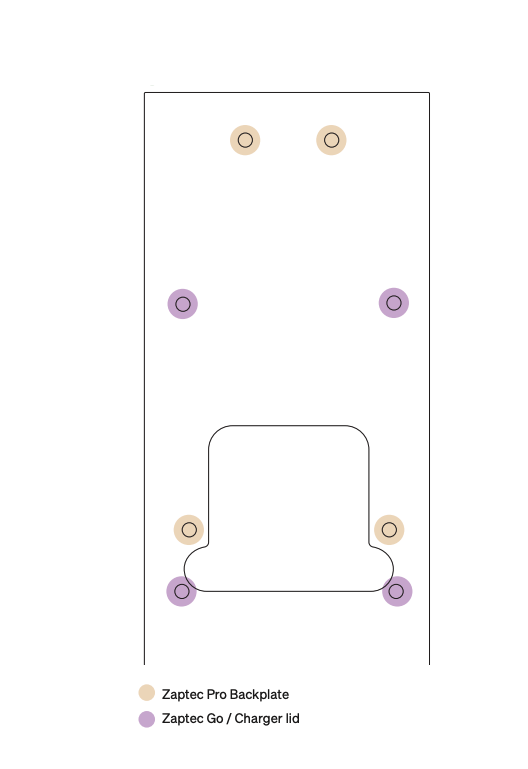

- Position the backplate at the designated mounting points.
- Attach using the supplied M5x12 screws (maximum 8Nm torque).
If no charging station is attached, install the charger lid.
5. Attach the top and front lids

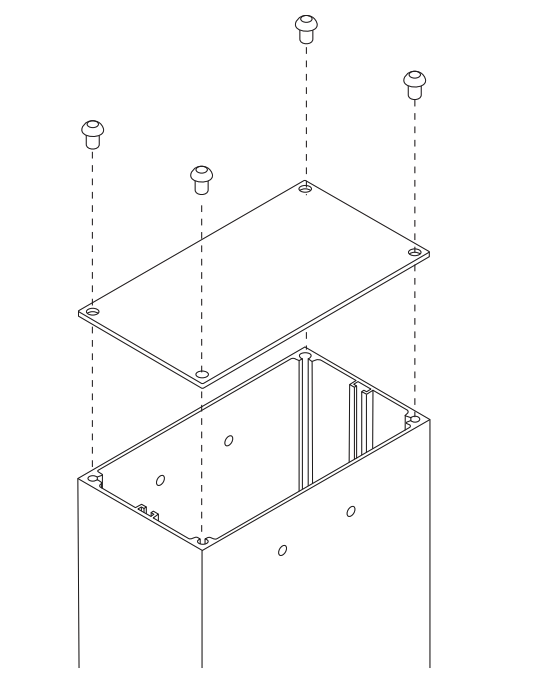

- Place the top lid and fasten with M8×12 bolts (maximum 8 Nm torque).

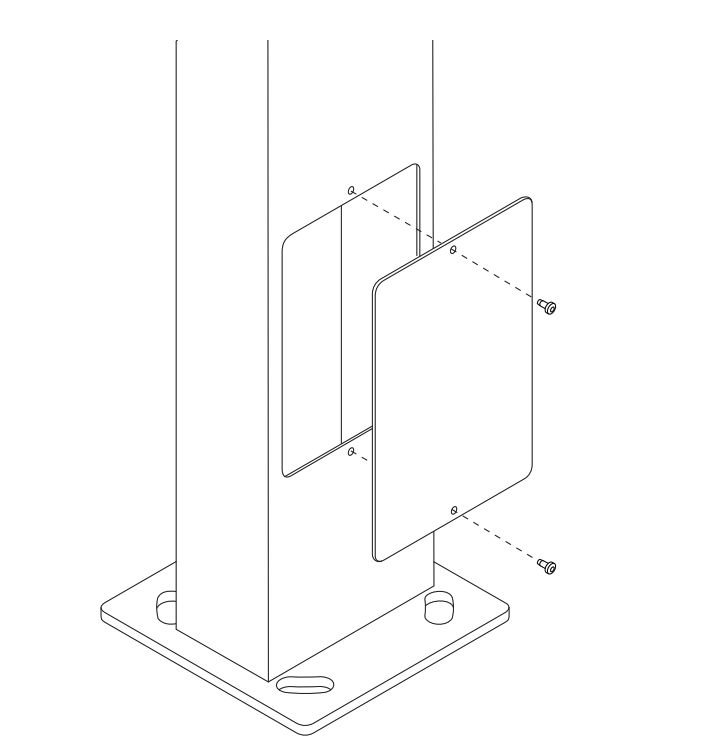

- Attach the front lid and secure with M5×12 screws (maximum 8 Nm torque).
6. Final checks
- Inspect all connections and fasteners.
- Ensure the column is straight and secure.
- Confirm all covers are properly installed and sealed.
- Clean the exterior with a damp cloth. Never use high-pressure washers.
