Zaptec Go supports both 1- and 2-phase charging on IT grid, but we recommend that the charging station be connected IT 1-phase, as some cars do not support 3-phase charging on IT grids.
IT 1-phase on 3-phase Installation
Up to three Zaptec Go units can be installed on the same three-phase IT system.
Use the following phase combination for load balancing:

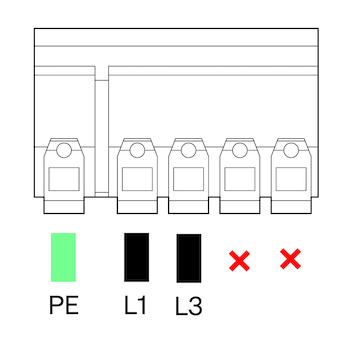

- Charger 1: L1 + L3

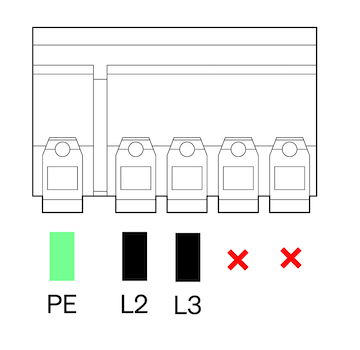

- Charger 2: L2 + L3

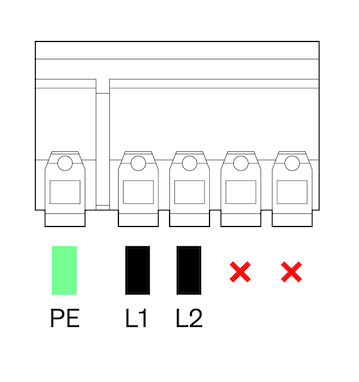

- Charger 3: L1 + L2
IT 1-phase on 1-phase Installation
IT 3-phase connection
Connect all the wires and press all the levers firmly down, as shown in the picture below. Then turn on the circuit breaker to continue.
