How to test the Zaptec Pro backplate

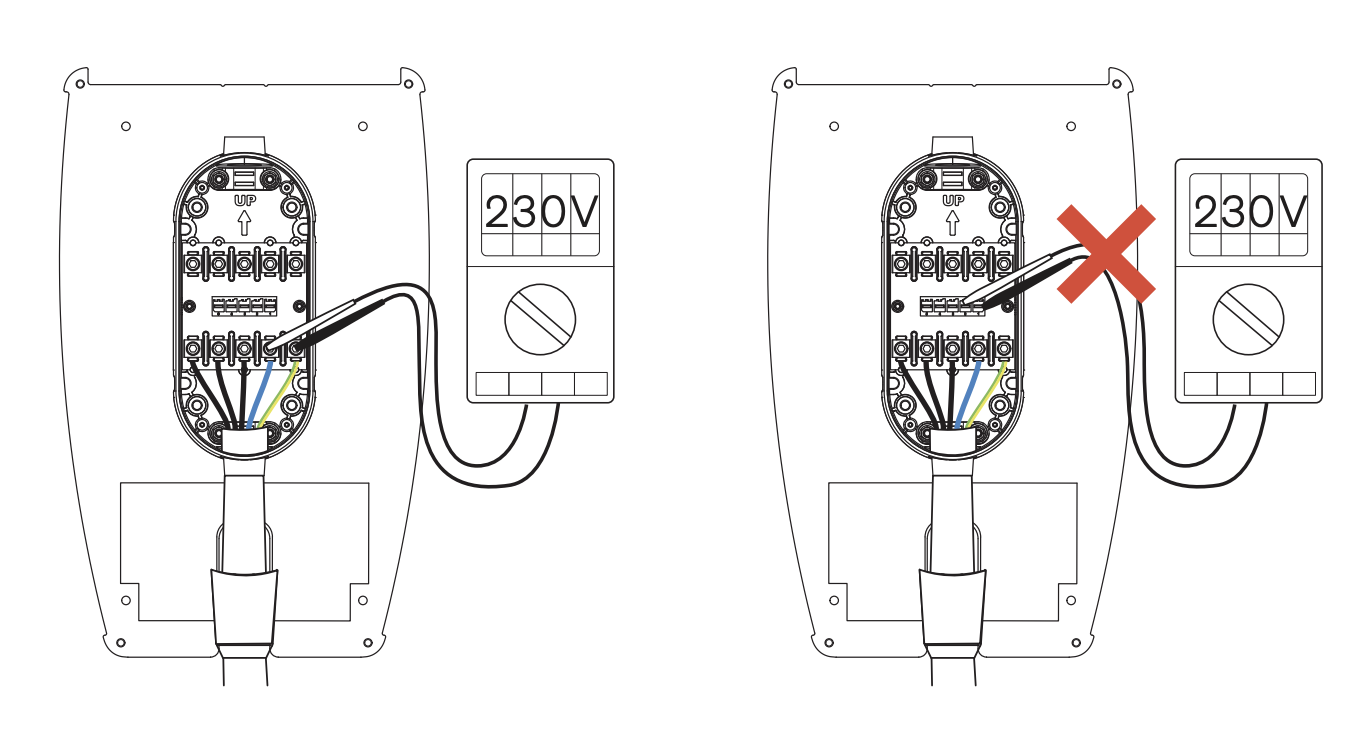

Test the installation directly on the terminal screws using a multimeter. To prevent damage, do not insert test probes, wires, or anything else into the quick-release connector on the backplate.



Voltage test Zaptec pro.png



Please be aware that our previous recommendation to use the test connector from Weidmüller is no longer permitted.
